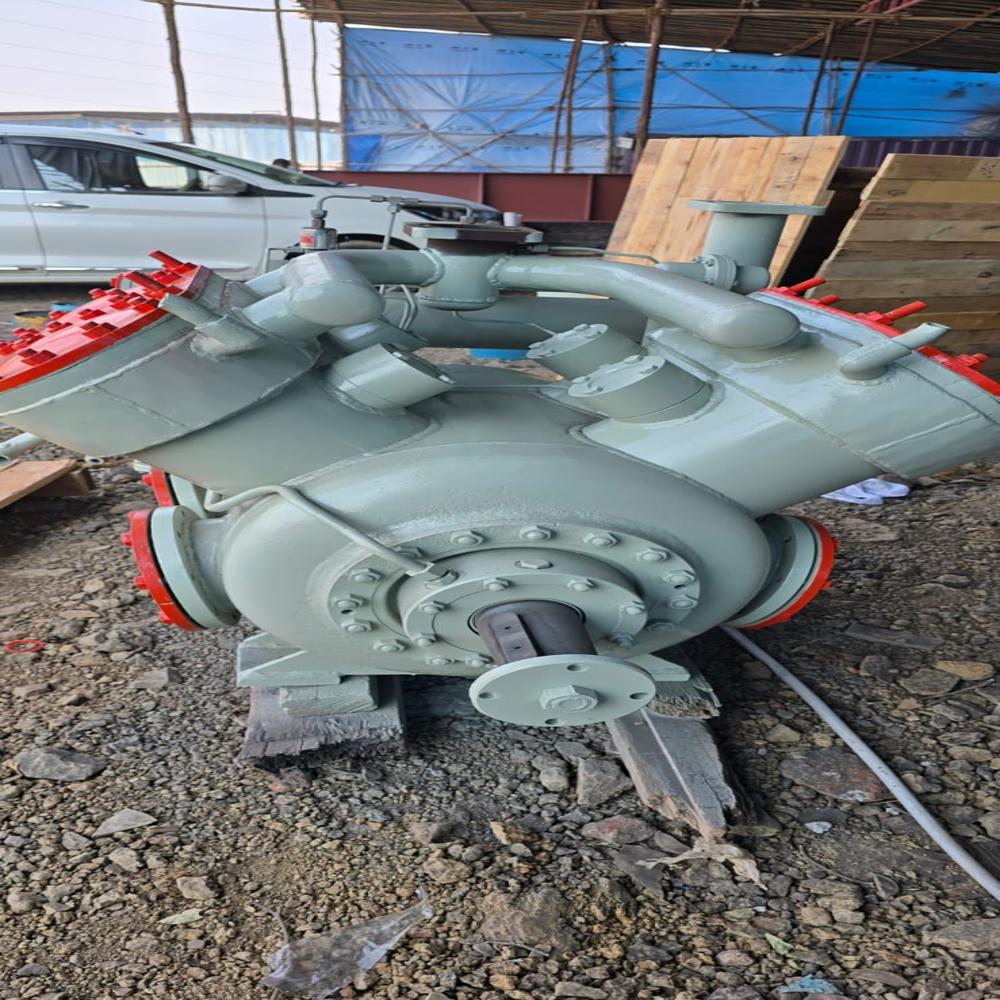

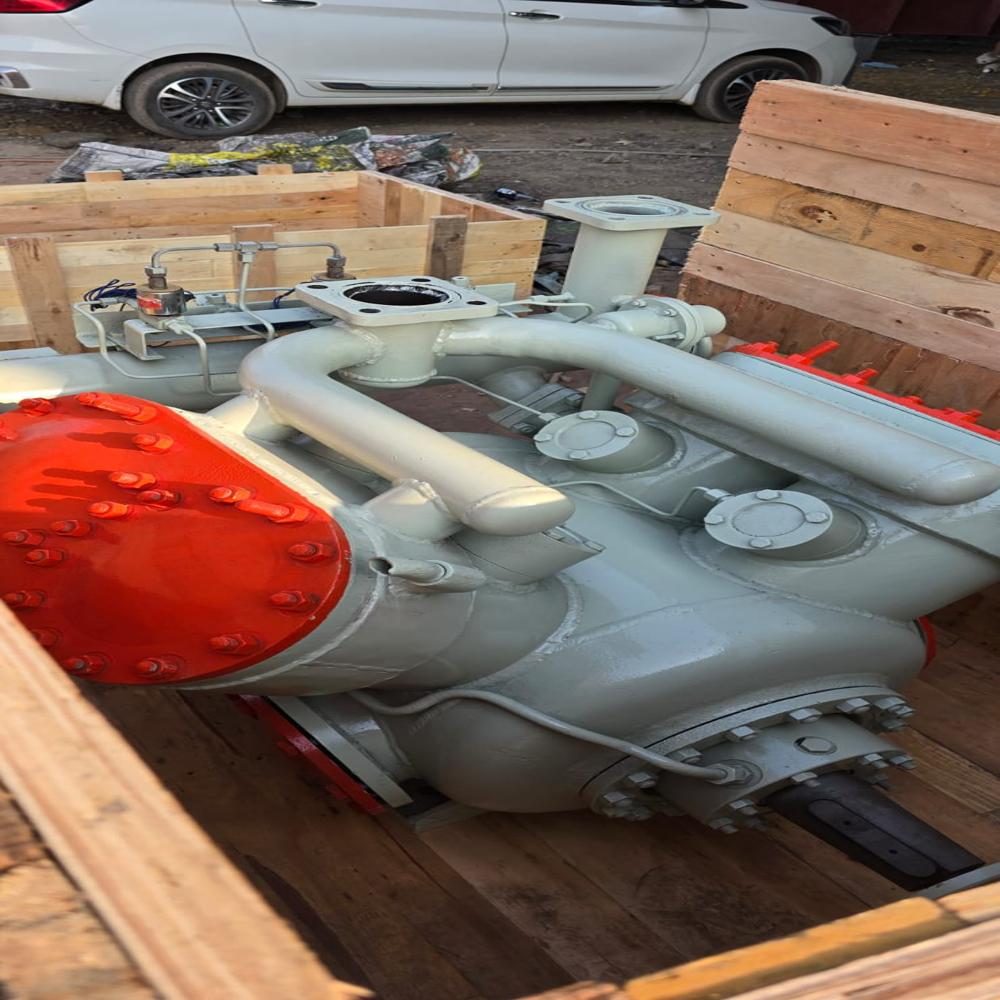

Kirloskar Kc4 Compressor

Name: Kirloskar Kc4 Compressor
Brand: BABA TRADERS
Price: 249999.0 INR
Availability: InStock

Price 249999.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Kirloskar Kc4 Compressor Specification

Power Consumption
Depends on Motor (typically 30 - 75 HP required)

Noise Level
85-95 dB(A)

Air Discharge
Flanged Outlet, Up to 600 CFM

Condition
New / Factory Refurbished

Material
Cast Iron Body, Steel Crankshaft

Power Source
Electric

Voltage
415V AC, 3 Phase (motor dependent)

Dimensions
Approx. 1700 mm (L) x 1000 mm (W) x 1100 mm (H)

Lubrication Type
Forced/Pressure Lubrication

Configuration
Horizontal, Water-Cooled, Reciprocating, Double Acting

Mute
No

Air Flow Capacity
Up to 600 CFM (varies with configuration)

Driven Method
Direct Coupled / Belt Driven

Working Presssure
Up to 14 kg/cm2 (200 psi)

Motor
Not Included (Supplied Separately)

Warranty
1 year

Oiling System
Force Feed Lubrication by Gear Pump

RPM
425 - 555 rpm (as per technical data sheet)

Stages
4 (Four Stage Compression)

Mounting
Base Mounted / Skid Mounted

Cooling
Water Cooled Cylinders and Intercoolers

Net Weight
Approx. 1900 kg

Suction Connection
Flange Type (Standard)

Model
Kirloskar KC4

Colour
Standard Industrial Epoxy Paint (Green & Red / Customizable)

Discharge Connection
Flange Type (Standard)

Application
Industrial Gas, Air Compression, CNG, Nitrogen Plant, Process Plant, Power Plant, Utilities

Piston & Rings
High Wear Resistant Alloy

Cylinder Bore x Stroke
Varies as per configuration, e.g. 140 mm x 100 mm (approx.)

Crankshaft Bearing Type
Heavy Duty Roller/Ball Bearings

Number of Cylinders
4 (Four)

Kirloskar Kc4 Compressor Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About Kirloskar Kc4 Compressor

Take advantage of the top-tier performance offered by the Kirloskar KC4 Compressor - a machine that truly stands out in the realm of industrial gas and air compression. With its astounding four-stage compression system and opulent engineering, the KC4 delivers reliability and robust output up to 600 CFM. Heroic heavy-duty bearings, high-wear-resistant pistons, and precision-flange connections ensure maximum operational efficiency. Available as new or factory-refurbished, the KC4's direct coupled or belt-driven versatility and customizable epoxy paint make it a must-have for power plants, nitrogen units, and process industries. Jump on this opportunity to elevate your operations.

Industrial Versatility and Usage Value

The Kirloskar KC4 Compressor is expertly engineered for heavy-duty industrial applications. Used mainly in gas compression, CNG stations, nitrogen and process plants, as well as utilities and power plants, this compressor is the top choice for continuous, opulent, and robust air solutions. Its flexible horizontal configuration and water-cooled components offer reliable double-acting performance for intensive operations, making it ideal for both standard and demanding usage environments.

Export Markets, Packaging & Certifications

Kirloskar KC4 Compressors are recognized across leading export markets including Asia, the Middle East, and Africa. Astounding quality checks and secure packaging methods ensure safe arrival of your shipped goods. Samples may be provided on advance Purchase Order, tailoring confidence before full-scale procurement. The compressor often arrives with essential certifications, guaranteeing compliance with industrial standards for your region and building trust right from your initial inquiry to the final delivery.

FAQ's of Kirloskar Kc4 Compressor:

Q: How does the Kirloskar KC4 Compressor ensure long-lasting performance?

A: The KC4 utilizes heavy-duty roller/ball bearings, high-wear-resistant alloy pistons and rings, and a robust force feed lubrication system, all contributing to superior durability and long service life.

Q: What are the standard configurations and applications for this compressor?

A: The Kirloskar KC4 can be configured with four cylinders, up to four stages, and is typically used in industrial gas compression, CNG, nitrogen plants, and process plants.

Q: Where can this compressor be installed and mounted?

A: It offers flexible installation with options for base mounting or skid mounting, suitable for power plants, utilities, and other indoor industrial environments.

Q: When can I expect delivery after placing a Purchase Order?

A: Lead times vary by region and configuration. After receiving your Purchase Order, detailed shipping timelines and tracking information for your shipped goods will be provided.

Q: What certifications and documentation come with the Kirloskar KC4 Compressor?

A: The compressor is supplied with relevant compliance certifications and quality documentation to meet regional industrial standards, ensuring safe and approved operation.

Q: How does the water-cooling system benefit heavy industrial usage?

A: Water-cooled cylinders and intercoolers help maintain optimal operating temperatures, enhancing performance and ensuring reliable, continuous operation in arduous industrial settings.
